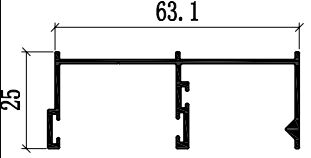

Aluminium Patio Window Extrusions Profiles Powder Coating Bronze

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	DeYuan
Sertifika:	ISO9001:2004, SGS
Model numarası:	30825-2

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 TON
Fiyat:	negotiable
Ambalaj bilgileri:	EP, Palet veya tahta sandık ile paketlenmiştir
Teslim süresi:	30 gün
Ödeme koşulları:	T/T, L/C

İletişim

Detaylı ürün tanımı

Malzeme:	Alüminyum Alaşım	Yüzey İşlem:	Toz Boya
Renk:	Bronz, beyaz, kömür, siyah	Uzunluk:	6M veya 3M veya Özelleştirilmiş
Garanti:	5 yıl

Detailed Product Description

Product Name:	Aluminium Sliding profiles	Alloy:	6063,6060,6463
Material :	Aluminium Alloy	Surface Treatment:	Powder Coating
Deep Process :	Milling, Drilling ,Bending, Cutting	Temper:	T5,T6,T66

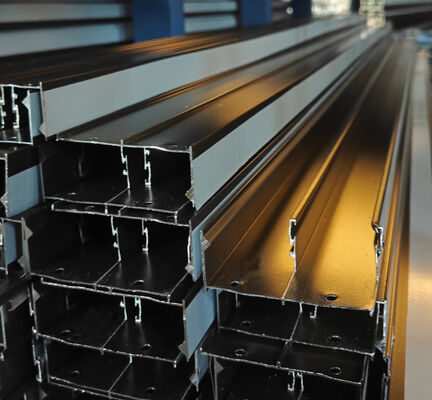

Aluminium Patio Window Extrusions Profiles Powder Coating Bronze 0

Production Application:

An aluminium extrusion profile is the simple solution to almost all design problems.
Aluminium instead of steel, wood or plastic.
Extrusions are found in almost every industry and market application. They are in your home, your car, your office, in planes, trucks, trains and boats; in airports, factories, machines and power stations.

Their versatility contributes to the performance of aluminium as the world’s fastest growing metal.

Primary Technical Data

1) Chemical composition

Alloy	Si	Mg	Fe	Cu	Mn	Zn	Cr	Ti
6063	0.2~0.6	0.45~0.90	<0.35	<0.10	<0.10	<0.10	<0.10	<0.10
6060	0.3~0.6	0.35~0.60	0.1~0.3	~	<0.10	<0.15	<0.05	~
6463	0.2~0.6	0.45~0.90	<0.15	<0.20	<0.05	<0.05	~	~
6005	0.6~0.9	0.40~0.60	<0.35	<0.10	<0.10	<0.10	<0.10	<0.10
6061	0.4~0.8	0.80~1.2	<0.70	0.15~0.4	<0.15	<0.25	0.04~0.35	<0.15
6082	0.7~1.3	0.60~1.2	<0.50	<0.1	0.4~1.0	<0.20	<0.25	<0.10
6351	0.7~1.3	0.40~0.8	<0.50	<0.1	0.4~0.8	<0.20	~	<0.10

2) Mechanical property

Alloy	Temper	Tensile strength	Yield strength	Elongation
6063	T5	≥ 160Mpa	≥ 110Mpa	≥ 8%
6063	T6	≥ 205Mpa	≥ 180Mpa	≥ 8%
6061	T5	≥ 265Mpa	≥ 245Mpa	≥ 8%

Order,payment,terms,shipment

1, Minimum order: 500kg per item and 1 ton per color, sample will be sent for customer free of charge provided by approval and kept for future mass production.
2, Sample Lead Time: working days(15 days for making the tool and 10 days making the samples. Before sending the samples to customer, samples should pass strict test in our lab. )Production Lead time: it depends on customers' order quantity ( 30 working days after deposit).
3, Payment: 30% upon order confirmation and balance before delivery by T/T
4, Tooling:100% prepaid by T/T.
